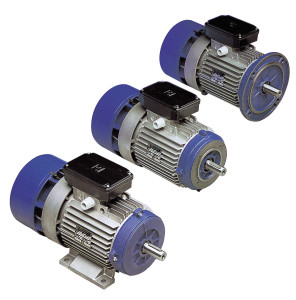

MGM squirrel-cage motors and brakemotors deliver the best performance and reliability combined with low or no maintenance. Designed for continuous duty also under tough service conditions, these brakemotors are used wherever very fast, precise, very high cycling and safe braking are the application needs. BA series represent today’s most advanced brake motors technology.
Power Range: 0.12 HP – 100HP.
Click here for the comparison chart of MGM motors.
Main Features
- All motors designed for inverter duty
- Single Speed / Two Speed
- Totally Enclosed Fan Cooled (TEFC)
- Dimensional Standards per IEC Standard (Metric)
- Flange Coupling per NEMA Standard (Imperial)
- Continuous duty (BAX)
- Engineered design
- Oversized brake disc for high brake torque or long lasting (reduced maintenance)
- Manual Brake Release
- Fine brake torque adjustment
- AC (3-ph.) brake – High Brake Torque/Very fast reaction Time
- DC brake (single ph. with built-in rectifier)
- Brake Terminals Connected with Motor Terminals or on a Separated Terminal Block
- Electrical Standards per NEMA-MG1
- Compact or Oversized Conduit Box
- Pressed-steel brake cover
- Molded plastic fan
- Extremely low rotor inertias
- Heavy-cycling application
- Hex Hole on NDE for manual shaft rotation with Allen Key
- cCSAus approved
- CE Mark for shipment into Europe.
- CCC approval for shipment into China
- Go to Product Catalogues
Insulation System
- Phase insulators
- Vertical dipping
- Slot Liners
Mounting Configuration
- Feet Integrated in the frame
- Foot Mount(B3)/Face Mount (B14)/Flange Mount (B5)
- NEMA C face
- Reduced or Increased flange/shaft size available
- Suitable for mounting in any position
Optional Features
- Severe duty protection (Wash Down – Marine)
- 50 Hz for worldwide use
- Forced cooling for low frequency operation
- Thermostat or Thermistors (PTC)
- Classes H insulation
- Mounted encoder
- Drain Holes
- Micro-Switch detector (ON/OFF Brake – Brake wear)
Typical Applications
- Standard Induction Duty Applications
- Rapid Cyclic Start/Stop
- Palletizers
- Packaging Machinery
- Conveyors
- Synchronized Systems
- Speed Regulated
- Winches
- Transfer Cars
- Stackers
- Crane Hoist/End Truck/Trolley
- Etc. See Applications Section
