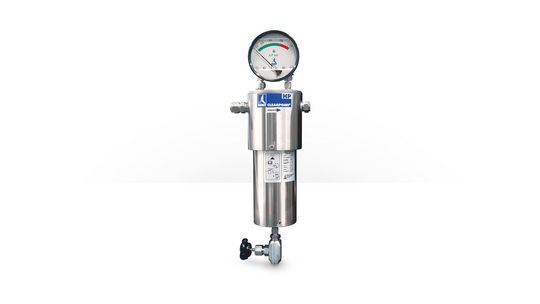

CLEARPOINT® high pressure filter, 100 to 500 bar | Bekomat

The higher the pressure is, the higher the requirements are for compressed air filtration. With a very robust housing and high temperature resistance of up to 120°C, CLEARPOINT high pressure filters provide a variety of technical and economical advantages for reliable separation of solid contaminants, aerosols, oil vapours and odours.
Piston compressors cause pulsations in the compressed air flow based on their system designs. The resulting vibrations can cause conventional filter housings to leak. CLEARPOINT filter housings have a special locking system and therefore remain leak proof.

Quality in every detail

The housing, filter element caps and support cylinders of our high-pressure filters are made of stainless steel - for good reasons: This design enables us to prevent corrosion and guarantee exceptionally long service life, even with aggressive condensates. CLEARPOINT high pressure filters are available for the pressure stages 100, 350 and 500 bar, optionally with manual drain off and differential pressure manometer. The perfect solution for every requirement.

The CLEARPOINT high pressure filters for 100 to 500 bar are available in different degrees of filtration:

Filtering degree	Particle size
Coarse Filter C	25 μm
Coarse Filter G	5 μm
Fine Filter F	1 μm
Superfine Filter S	0,01 μm
Activated carbon filter	Oil vapour, odours
